Introduction

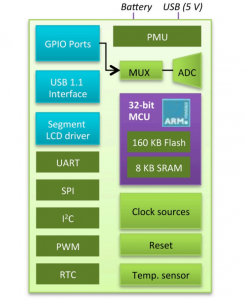

Brody is a member of the general purpose microcontroller family of products from indie. It is a highly integrated 32-bit general purpose ARM M0-based microcontroller which clocks at up to 20MHz.

Brody features a high performance a 32-bit wide ARM M0 implementation with 160kB of flash RAM and 8kB of SRAM. A real time clock (RTC), 12MHz RC oscillator, 32kHz sleep mode clock, 10kHz auxiliary clock, and watchdog timer are all fully integrated on die for high performance, low power design.

Brody includes integrated power management and is capable of running entirely off either a 3V battery or the integrated USB port. An integrated charge pump is capable of generating 4.5V from the battery and supplies power to the LCD. No other components are required for power regulation of the IC, creating an efficient, low cost design.

Brody also integrates multiple interface options. It can drive up to 120 display elements in a 4 x 30 LCD segment display for feature-rich meaurement readouts. Brody includes a USB 1.1 (USB 2.0 compatible) serial interface supporting control, bulk, and interrupt transfers so that data can be stored and downloaded at a later time.

Parameters

Parameter Name Value Comments
MCU ARM M0 32-Bit MCU
Flash 160kB
RAM 8kB
GPIOs 18
LED Drivers
RF
ADC
ADC Channels
DAC
PWM  2x12bits
Others  4×30 segments LCD, USB1.1,1xUART,1xI2C,1xSPI
Power Supply 2.2-3.3V
Operation Temperature -40C ~ +85C
Package 8×8 120pins BGA

Documentation/Tools

catgory Link Upload Date
Product Brief brody-ProductBrief.pdf  2018/02/25
