Introduction

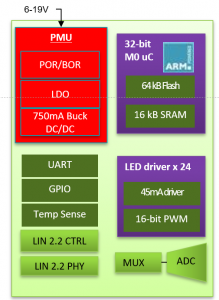

RuGBy is aimed car interior light application, based on 32bits ARM , running at 16MHz.
RuGBy integrates 64KB Flash, 16KB SRAM, High Power Management Unit, 18 x 16bits PWM , max.45mA constant current source for LED control with 200uA step accuracy .
RuGBy integrates 1 X UART and 2 x SAE J2602 LIN Controller and Transceiver, can be configured as master or slave.
RuGBy integrates LED PN junction detection,Over Voltage and Over Temperature circuit.
RuGBy integrates max 600mA DC/DC, can be supplied directly from Vbattery.
Parameters
| Parameter Name | Value | Comments |
|---|---|---|
| MCU Core | ARM M0 32-Bit MCU | |
| Flash | 64kB | |
| RAM | 16kB | |
| GPIO | 3 | |
| RGB LED | 6 | Can be extended to 18 |
| PWM | 18×16 bits | |
| Power Supply | 6-19V | |
| Operation Temperature | -40 ~ +125C | |
| Package | 6×6 48pins QFN |
