Introduction

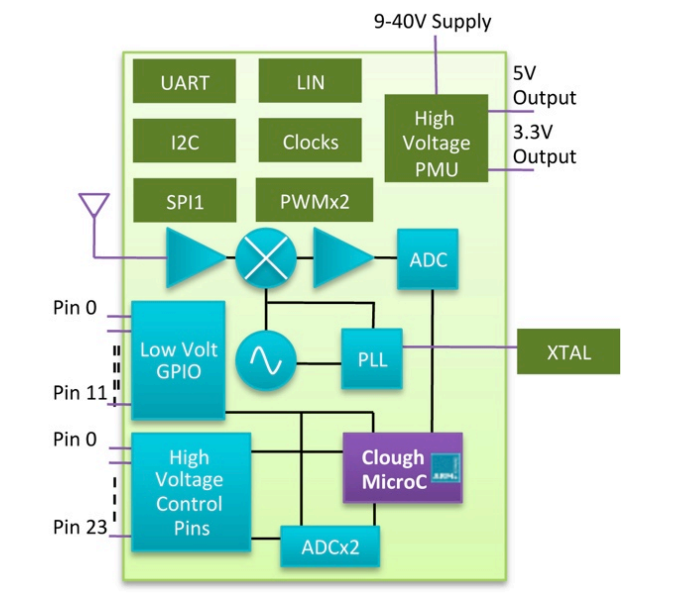

uSesame is a high-featured member of indie’s HV/Automotive series of ARM M0-based microcontrollers. Clocking at up to 20MHz, the ARM M0 core integrates 160kB of flash RAM and 8kB of SRAM on die for feature-rich applications or those requiring redundancy of data storage. It also integrates a superheterodyne ISM band ASK receiver operating at 433MHz and with sensitivity performance of -110dBm. It can support a wide array of applications including garage door openers and radio controlled industrial door and security systems as well as automotive alarm systems.
The iND83223 integrates multiple clocking options including a high accuracy (1%) 10MHz RC oscillator, low cost 3.58MHz XTAL oscillator, and low power (<1uA) 10kHz auxiliary clock. It also contains (3) 32 Bit timers, and a watchdog timer for high performance, low power designs.
uSesame has a rich set of GPIO capabilities. There are 24 high voltage (9-45V) GPIOs which can source 5mA or sink 25mA of current, 8 high voltage (9-45V) GPIOs which can sink 200mA in order to drive a relay coil plus 1 high voltage (9V-45V) GPIO which can source 200mA or sink 25mA, and 12 low voltage (3.3V nominal) GPIOs.

Parameters

Parameter Name Value Comments
MCU ARM M0 32-Bit MCU
Flash 160kB
RAM 8kB
Low Voltage GPIOs 12
High Voltage GPIOs 15
High Voltage and Current GPIOs 9
LED Drivers  1
RF 1x 433MHz ASK Receiver
ADC  2×8-10bits
ADC Channels  2×28
DAC
PWM 2x12bits
LIN2.0  1
Others 1xUART,1xI2C,1xSPI
Power Supply 9-45V
Operation Temperature -40C ~ +85C
Package 7×7 48pins QFN/5×5 32pins QFN



Documentation/Tools

catgory LINK Upload Date
Datasheet iND83223_usesame_datasheet_rev2.0.pdf  2018/02/25
Product Brief usesame-ProductBrief.pdf  2018/02/25
Demo Code uSesameDemoCodes_v09.zip  2018/02/25
