Introduction
Reaplum is aimed car interior light application, based on 32bits ARM , running at 16MHz.

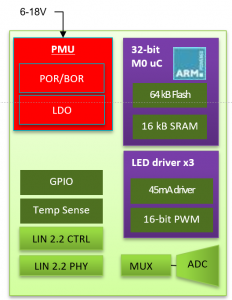

Realplum integrates 64KB Flash, 16KB SRAM, High Power Management Unit, 3 x 16bits PWM , max.45mA constant current source for LED control with 100uA step accuracy and 2 x LIN Transceiver, 2.x/SAE J2602 compliant, can be configured as master or slave.
Reaplum also integrates LED PN junction detection,Over Voltage and Over Temperature circuit.
Realplum is truly single-chip solution for car interior light application.
Parameters
| Parameter Name | value | Comments |
|---|---|---|
| MCU Core | ARM M0 32-Bit MCU | |
| Flash | 64kB | |
| RAM | 16kB | |
| GPIO | 4 | |
| RGB LED | 1 | |
| PWM | 3x16bit | |
| Power Supply | 6-18V | |
| Operation Temp. | -40 ~ +125C | |
| Package | 4×4 20pins QFN |
Documentation/Tools
| catgory | LINK | Comments |
|---|---|---|
| Datasheet | Realplum-Datasheet | Contact Local Sales for Detail… |
