IND86201

  • High integrated SoC, less external component
  • ARM Cortex M0
  • Integrated 160kFlash & 8kSRAM
  • 4 timers and Watchdog
  • High accuracy analog front-end 17Bit ADC
  • 14 Bit DACs x 2
  • Integrated Switch Matrix
  • USB 1.1 Full Speed
  • Segment LCD driver
  • GPIOs with analog input capability
  • All required clock generators PWM, I2C, SPI
  • Temperature sensor
  • Power management unit QFN-88/BGA-120 package
  • Support free HCT measure library
  • Primary Application:Glucose Meter
  • Not Recommended for New Designs


IND86202

  • High integrated SoC, less external component
  • Cortex-M0 core running up to 48MHz
  • 128KB FLASH and 16KB SRAM
  • 14bit 500Ksps SAR ADC Hardware oversampling up to 17 Bits
  • 2 channel DMA support UART/SPI/ADC/DAC
  • 14 bits sub-range DAC x 2 support 400Ksps
  • USB 1.1 Full Speed
  • Support multiple power domain for lower power consumption
  • Full interface – UART x 3, PWM x 6, I2C, SPI
  • Support 6*30/4*32/3*32 segment LCD
  • QFN100 package
  • Support free HCT measure library

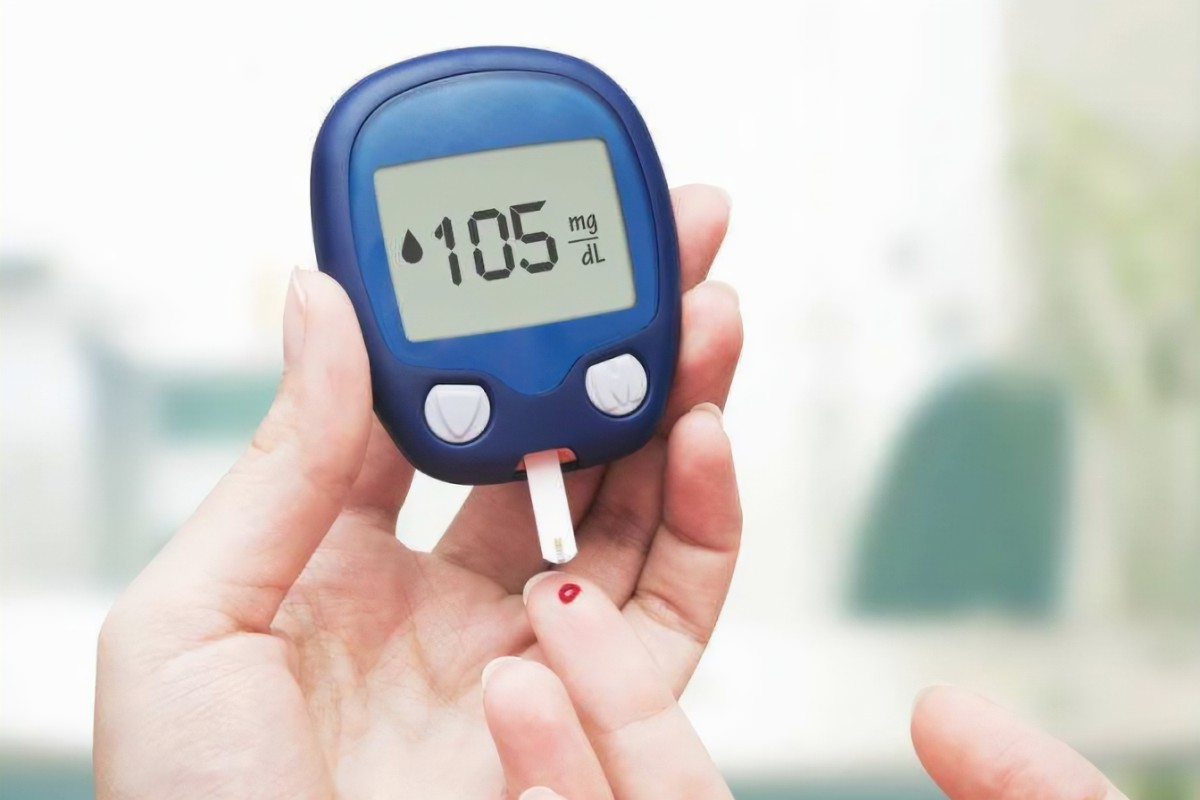

  • Primary Application:Glucose Meter
