Introduction

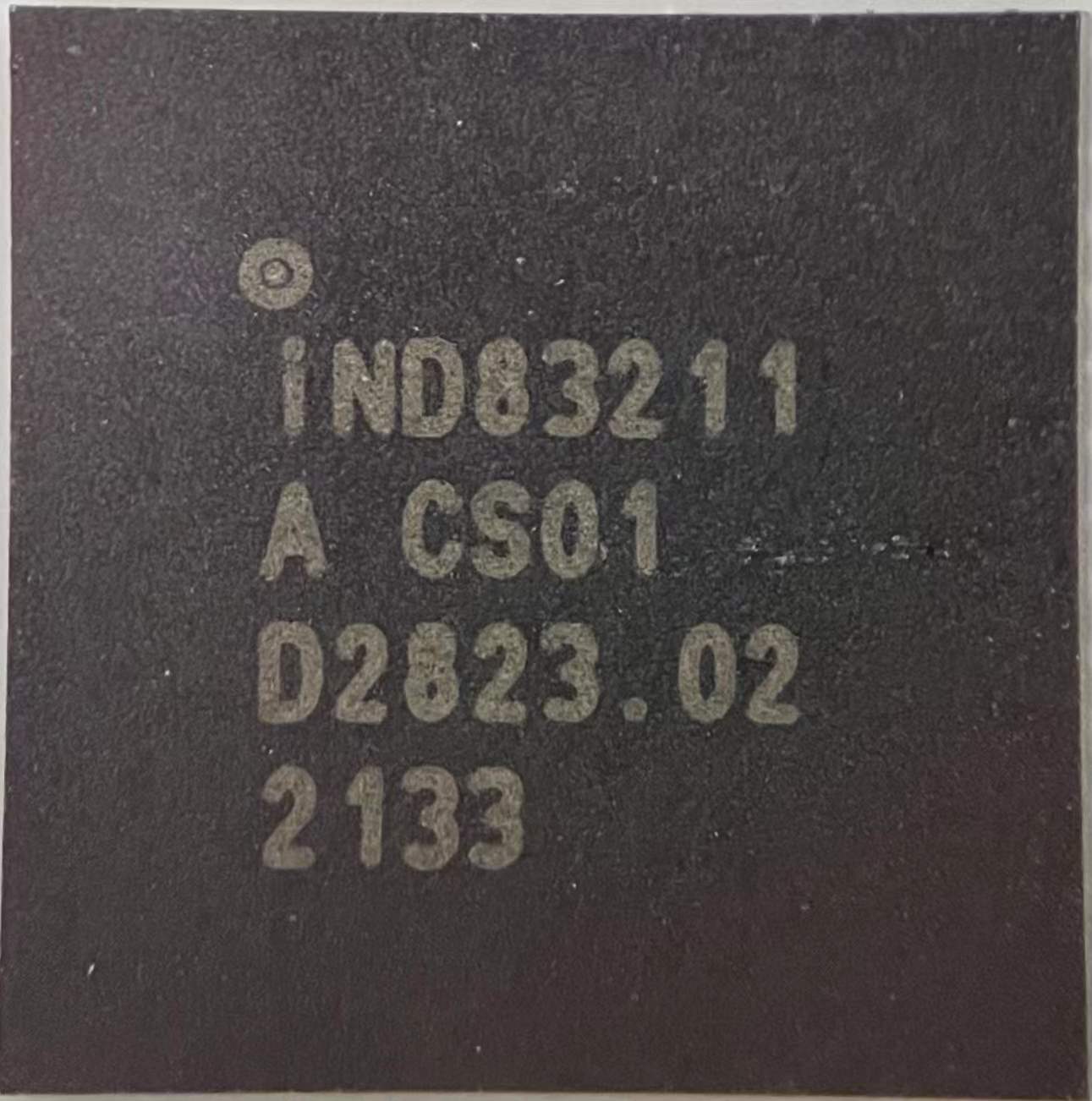

IND83211 is aimed car interior light application, based on 32bits ARM , running at 16MHz.
RuGBy integrates 64KB Flash, 16KB SRAM, High Power Management Unit, 24 x 16bits PWM , max.45mA constant current source for LED control with 200uA step accuracy .
RuGBy integrates max 750mA DC/DC, can be supplied directly from 24V battery.
RuGBy integrates 1 X UART and 2 x SAE J2602 LIN Controller and Transceiver, can be configured as master or slave.
RuGBy integrates LED PN junction detection,Over Voltage and Over Temperature circuit.
Parameters
| Parameter Name | Value | Comments |
|---|---|---|
| MCU Core | ARM M0 32-Bit MCU | |
| Flash | 64KB | |
| RAM | 16KB | |
| GPIO | 9 | |
| RGB LED | 24 | Can be extended to 24 |
| PWM | 24×16 bits | |
| Power Supply | 6-19V | |
| Operation Temperature | -40 ~ +125C | |
| Package | 6×6 48pins QFN |
Heading Text
| catgory | LINK | Comments |
|---|---|---|
| Datasheet | IND83211-Datasheet | Contact Local Sales for Detail… |
